Hitch Receiver Sizes: How to Choose the Right One

The right receiver size isn’t just about strength, it’s about fit. A 2-inch receiver might work for some trailers, but not all. Whether you’re towing gear or protecting your investment with a lock, the correct hitch class and receiver fit make all the difference.

If you’re just here to figure out which receiver size fits your vehicle and towing needs, here’s the quick breakdown.

• Class 1 – 1-1/4" receiver, up to 2,000 lbs; best for bike racks on compact cars.

• Class 2 – 1-1/4" receiver, up to 3,500 lbs; ideal for small trailers on crossovers.

• Class 3 – 2" receiver, up to 8,000 lbs; fits campers and boats on midsize SUVs.

• Class 4 – 2" receiver, up to 10,000 lbs; built for heavy trailers on full-size pickups.

• Class 5 – 2.5"–3" receiver, up to 21,000 lbs; made for HD trucks like RAM 2500 or F-350.

Just remember: size isn’t strength. A 2.5" receiver on an 8,000 lb truck proves it, always check both.

Receiver size is just the start.

Keep reading to see how it all connects, ball mounts, accessories, locks, and how to get your setup right. Let’s go!

Not All Hitches Are Created Equal: Understanding the Five Main Classes

Each hitch class has its own rating, purpose, and fit. Here’s how to pick the right one for your vehicle and tow load.

Note: The elusive 3-inch receivers are mostly found on 2017+ Ford Super Duty trucks. They’re rare and require specialized accessories.

Hitch Size ≠ Hitch Strength: The 2-Inch Misconception

Many assume all 2" receivers are Class 3 or 4, but size doesn’t define class. Some “Class 3” hitches only tow 4,000 lbs, while others rated for 10,000+ lbs still use 2".

So, always verify both size and weight rating. Next, we’ll show you how to measure yours correctly.

That said, understanding hitch classes is the first step, but knowing your receiver size alone isn’t enough.

It’s how that size affects the rest of your towing system that truly matters. Before you hook up your next trailer, let’s look at how receiver fit influences everything from ball mounts to accessory safety.

How Receiver Size Impacts Every Part of Your Towing Setup

Your towing setup is only as strong as its weakest link.

Even with a heavy-duty truck, an ill-matched or underrated receiver puts everything at risk. At Proven Industries, we’ve learned it’s not about size, it’s about fit and how every part works together.

Here’s why receiver size matters.

1. Hitch Ball Compatibility

Every trailer coupler is designed to pair with a specific hitch ball size. But that ball sits on a mount, and that mount fits into your receiver.

If the receiver is undersized or oversized for your setup, your ball mount may not align correctly, leading to instability or improper tongue weight distribution.

This mismatch can cause trailer sway or premature wear on the hitch components.

2. Pin Size and Fitment

A 1-1/4" receiver uses a 1/2" hitch pin. A 2" or 2.5" receiver needs a 5/8" pin. Get it wrong, and you’ll either be forcing parts or introducing unnecessary slop into the system.

That slop isn’t just annoying, it’s dangerous over time, especially under load.

3. Weight Distribution Systems

If you're towing a load that exceeds half your vehicle’s weight, a weight distribution hitch helps level your setup.

But these systems only work correctly when the receiver is the right size and class.

A mismatched or under-classed receiver can render the entire system ineffective, even if the bars and brackets are set up perfectly.

4. Accessory Compatibility

From cargo carriers to bike racks, accessories are engineered to fit specific receiver sizes.

Forcing a 2” accessory into a 1-1/4” receiver with an adapter isn’t just bad form, it’s asking for long-term wear and potential failure, especially on long trips or rough roads.

Bottom line: receiver size affects far more than just what fits, it influences how your entire system functions under load.

From ball mounts to accessories, one mismatch can throw off your whole setup. Up next, we’ll show you exactly how to measure your receiver so you’re never left guessing.

Here's How to Measure The Hitch Receiver The Right Way

When it comes to towing, precision matters.

And nowhere is that more obvious than in your receiver hitch. Too often, customers face loose accessories, bent pins, or locks that don’t fit, all because the receiver size wasn’t what they thought.

Dealerships and installers don’t always get it right. We’ve seen vehicles labeled “Class 3” show up with 1-1/4" receivers. Aftermarket parts and reducers add even more confusion.

That’s why at Proven Industries, we always say, measure it yourself.

How to Measure Your Hitch Receiver (The Right Way)

1. Clean the receiver. Dirt and rust distort your reading. Start with a clean, smooth surface.

2. Measure inside edge-to-edge. Use a ruler or caliper to measure the inside width. Match it to a standard: 1-1/4", 2", 2.5", or 3".

3. Confirm with your manual or hitch class chart. Don’t rely on size alone, match it with your vehicle’s tow rating.

What Happens When You Get It Wrong? Real Problems That Start Small

• Adapters cause wear. Reducer sleeves often introduce slop, leading to wobble, wear, and long-term fit issues.

• Dealership errors happen. We've seen mislabeled hitches more than once.

• Installer mismatches. Services like U-Haul may fit a hitch that doesn’t align with your trailer setup.

The result? Misaligned hitch balls, locks that won’t seat, and couplers that can’t secure, turning a small guess into a big safety risk.

Getting the receiver size right is a critical first step, but it’s not the finish line.

One wrong measurement can affect everything from hitch fit to safety and theft protection. Now let’s look at how your coupler plays a role, and why choosing the right lock is just as essential.

Receiver Size and Trailer Security: Why Fitment Isn’t Just About the Opening

Knowing your receiver size is a great start, but securing your trailer goes beyond that. True security depends on how well your lock fits your coupler, not just your receiver.

Small differences in latch design, coupler lips, and chain placements can throw off even the most rugged-looking lock.

That’s where most setups go wrong, because not all couplers are built the same.

Why Universal Locks Fail in the Real World

• One-size-fits-most rarely fits well. Universal locks often rely on loose tolerances that don’t fully engage the coupler.

• Exposed gaps mean easy access. Even a few millimeters of space can give thieves the leverage they need.

• Real-world failures are common. Crowbars and pipe wrenches can twist or pop ill-fitting locks right off.

• Visual deterrents aren’t enough. A lock that looks tough but doesn’t fit snugly offers false security.

Locks That Actually Match (And Why They Matter)

• Model 2517-RT – Designed for 2-5/16" RAM twist latch couplers. It hugs the lip precisely to prevent tampering.

• Model GDS – Built for Demco goosenecks with a 4" square tube. No rattle, no gap, no doubt.

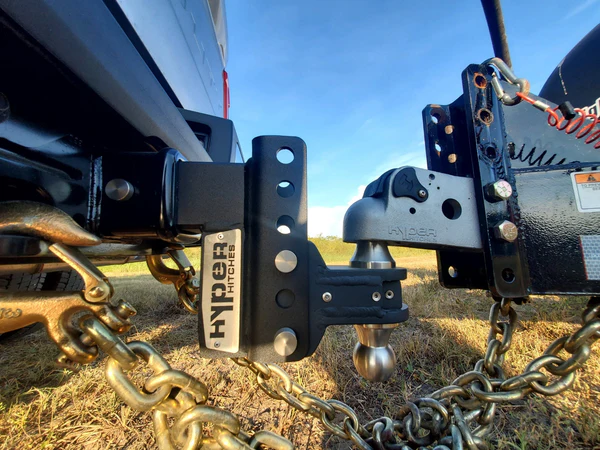

• Hyper Hitches with Integrated Locks – A hitch and lock combo engineered for seamless fit and unmatched protection.

Remember that even the strongest lock can fail if it doesn’t match your coupler.

Security comes down to precision, not just appearance. Choosing a lock built for your exact setup eliminates the guesswork, and gives you real peace of mind.

Helpful Resource → 7 Masterlock Alternatives for Security Against Theft

Accuracy Beats Size When It Comes to Safe Towing

When it comes to trailer hitch receiver size, bigger isn’t always better.

What truly matters is accuracy, having a setup where every part fits with purpose, from the receiver to the coupler to the lock itself. We've seen too many setups fail not because they weren’t strong, but because they weren’t precise.

If there’s one thing you take from this guide, let it be this: never guess your hitch class, receiver size, or coupler type.

Measure your receiver with care, verify your coupler's design, and don’t settle for a lock that “sort of fits.” A tight, tamper-proof fit is the first and best line of defense against theft or failure on the road.
