Is a 2-Inch Hitch the Standard Hitch Size? What You Need to Know

The most common hitch setup in the U.S. is a 2-inch receiver, found on trucks, SUVs, and campers towing everything from trailers to boats. But “standard” doesn’t mean universal.

A 2-inch receiver doesn’t guarantee that your ball, coupler, or mount will fit.

To tow safely, these components must align in three specific ways:

• Receiver Size (1.25", 2", 2.5", or 3") must match your vehicle and towing needs.

• Hitch Ball Diameter (1-7/8", 2", or 2-5/16") must match your trailer’s coupler exactly.

• Weight Ratings across your hitch, ball, and mount must meet or exceed your trailer’s GVWR.

Most towing issues come from assuming “close enough” is good enough, it’s not. Misfits cause rattling, latch failure, and even full disconnects on the road.

That’s why we offer one-on-one help: just snap a photo of your coupler and send it in.

We’ll identify the right fit, no guesswork, no returns.

Read on to learn how hitch sizing actually works, what fits with what, and how to build the safest, smoothest towing setup possible.

Not Just a Ball and Bar, What “Hitch” Really Means in Towing

At a glance, a hitch might look like just a ball on a metal arm, but that assumption causes more mismatched setups than you’d think. To tow safely, it’s crucial to understand how each part of the system works together.

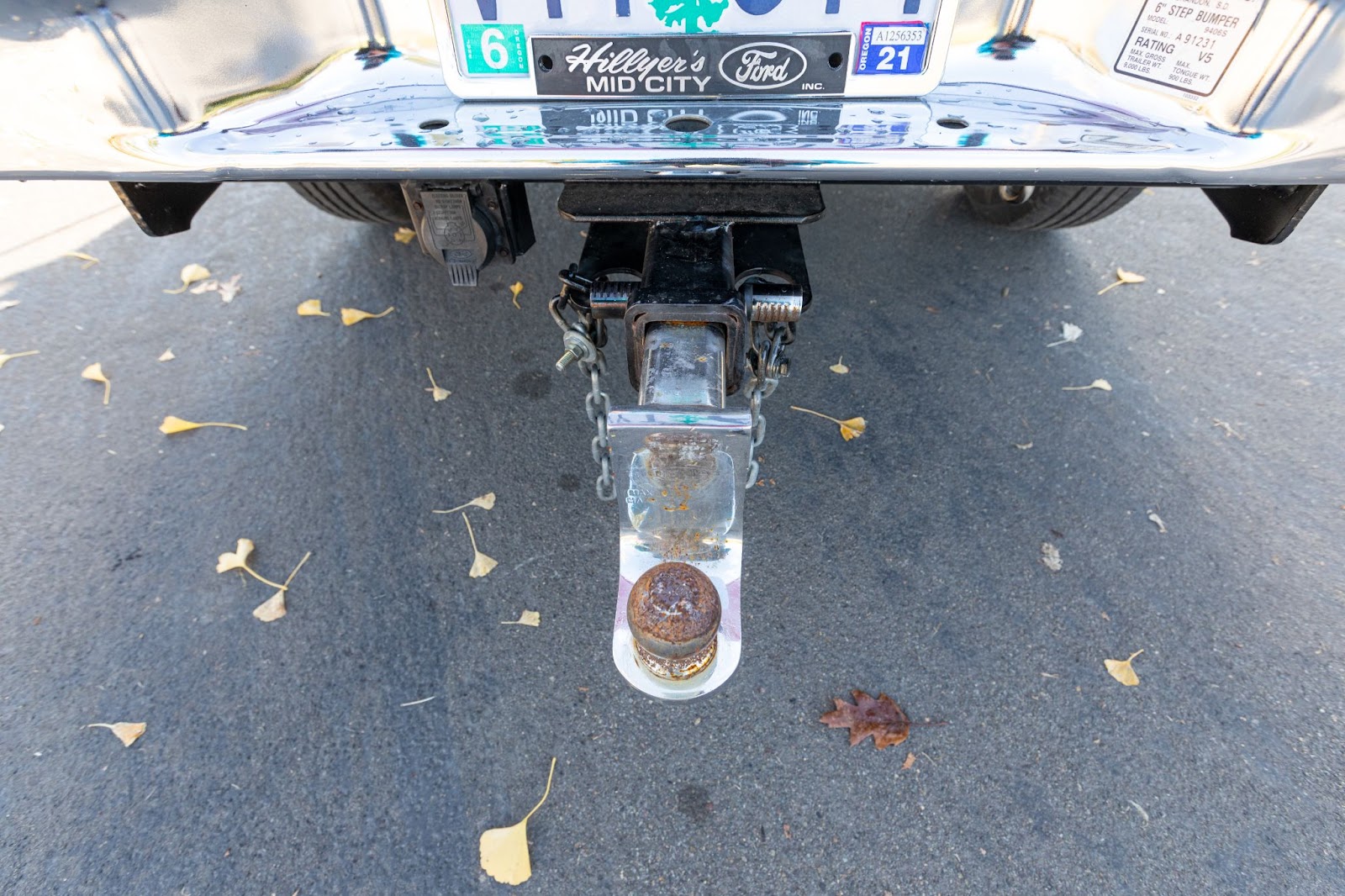

What Is a Trailer Hitch?

A trailer hitch is the core connector between your vehicle and trailer. Mounted to your vehicle’s frame, usually at the rear, it supports a ball mount and hitch ball, allowing you to tow trailers, boats, campers, and gear with stability and control.

Breaking Down the Key Parts

Many confuse the terms, so here’s what each piece actually means:

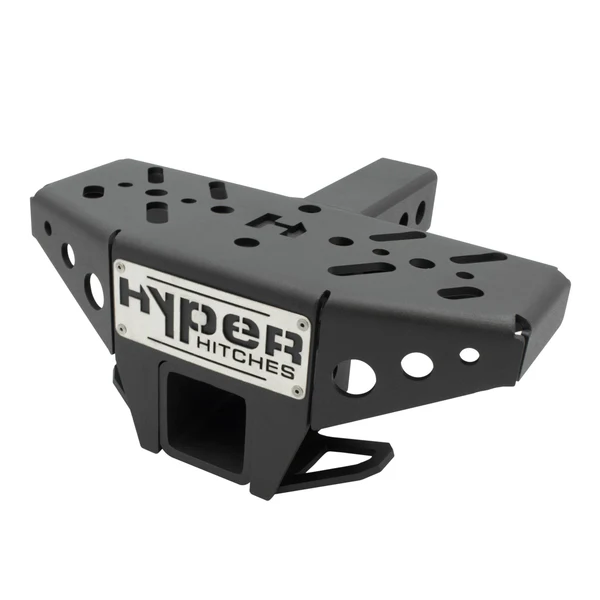

• Hitch (Receiver Hitch): Bolted to the vehicle frame, shaped like a square tube (1.25", 2", or 2.5").

• Receiver Tube: The socket that accepts the ball mount or accessories.

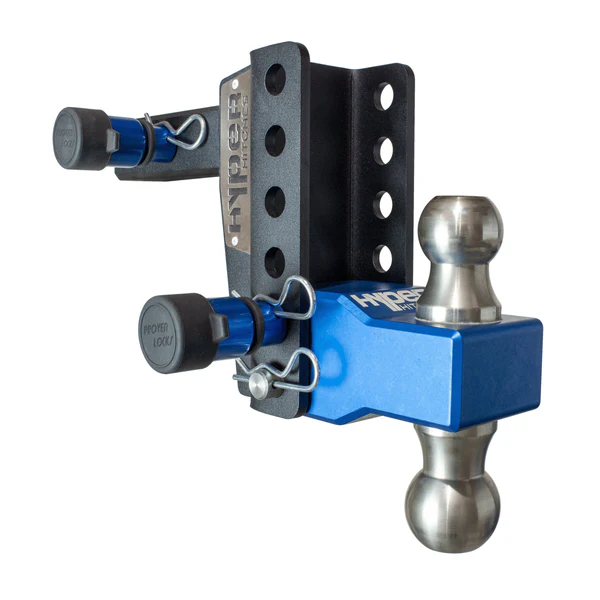

• Ball Mount (Drawbar): Slides into the receiver and holds the hitch ball.

• Hitch Ball: Connects to the trailer’s coupler; allows turning and articulation.

• Coupler: Latches over the ball on the trailer side, must match the ball size exactly.

Where Hitches Are Located

Most are frame-mounted beneath the rear bumper. While some vehicles come pre-equipped with a hitch, others, especially sedans or vans, require aftermarket installation.

Even factory hitches may not meet heavy-duty needs.

Types of Hitches You Might Encounter

• Rear Mount (most common)

• Front Mount (for plows/winches)

• Weight Distribution (for sway control)

• Gooseneck (bed-mounted, for heavy loads)

• Fifth-Wheel (RV-style pivoting plate)

• Pintle Hook (industrial/military)

Next, we’ll break down hitch classes and sizes with a quick-reference table so you can see what fits your vehicle, and your trailer.

Fast Reference Table: Hitch Sizes, Ratings, and When to Use Each

There’s a reason hitch sizing trips up even experienced trailer owners, it’s a layered system of classes, measurements, and use cases. But once you understand how it’s organized, things start to make sense.

The table below distills it all: from receiver size to ball compatibility to what each hitch class is really made for.

Use this as your cheat sheet before hitting the road, or before hitting “buy” on a new hitch or towing accessory.

Understanding hitch classes and receiver sizes is only part of the equation.

To build a safe and functional towing setup, you also need to get the hitch ball size right, because this is the point where your vehicle and trailer physically connect.

Each hitch class typically pairs with one or more ball diameters, but choosing the right one depends on your trailer’s coupler.

Mismatch the two even slightly and you risk poor handling, latch failures, or full detachment at highway speeds.

That’s why this next part matters: here’s a quick breakdown of the three standard hitch ball sizes and when to use each.

Don’t skip this; even a “standard” ball won’t work if it doesn’t match your coupler precisely.

What to Know About Ball Sizes

• 1-7/8" Ball: Best for light-duty towing (e.g., small utility trailers, light lawn equipment). Max weight around 2,000 lbs.



• 2" Ball: The most versatile and common; used across a wide range of trailers and applications. Rated up to 8,000–12,000 lbs.



• 2-5/16" Ball: Required for heavy-duty towing, like RVs, livestock trailers, or commercial hauls. Often rated 14,000 to 30,000 lbs.

Ball size is only half the equation, how your trailer’s weight transfers to the hitch matters just as much.

That’s where tongue weight comes into play, and it’s one of the most commonly overlooked safety factors in towing.

Don’t Skip the Tongue Weight

One of the biggest safety mistakes people make is ignoring tongue weight, the downward force your trailer places on the hitch.

Ideally, this should be 10–15% of your trailer’s total weight. Go over, and you risk rear-end sag and sway.

Go under, and you’ll fight fishtailing at every turn.

Next up, we’ll dive deeper into the most popular option on that list: the 2-inch hitch. It may be the gold standard, but there’s more to it than meets the eye.

Why the 2-Inch Hitch Is Considered Standard—and What You Should Know Before Choosing It

The 2-inch receiver hitch is the most commonly used size in the U.S., and for good reason.

It strikes the ideal balance between strength and versatility, handling everything from campers to utility trailers.

But just because it’s common doesn’t mean it’s foolproof. Too many drivers assume “2-inch” means one-size-fits-all. It doesn’t.

Why the 2-Inch Receiver Dominates the Market

Used primarily in Class III and IV hitches, the 2-inch receiver handles medium-to-heavy loads without jumping into commercial-grade overkill.

It’s compatible with countless accessories, from cargo racks to bike mounts, which makes it the go-to for most consumers.

Which Vehicles Come Equipped with a 2-Inch Hitch?

Plenty of factory and aftermarket setups come pre-loaded with a 2-inch receiver:

• Half-ton trucks (like the Ford F-150, Ram 1500, Chevy Silverado 1500)

• Mid-size and full-size SUVs (Jeep Grand Cherokee, Toyota 4Runner, Chevy Tahoe)

• Some crossovers and vans when equipped with a towing package

For most consumer-level towing, a 2-inch receiver is more than enough—if the rest of the setup matches.

So Who Uses the Other Sizes?

• 1.25-Inch Receivers: Smaller SUVs, minivans, or passenger cars (Class I/II) for bike racks or trailers under 3,500 lbs.



• 2.5-Inch Receivers: Heavy-duty trucks for towing 12,000+ lbs.



• 3-Inch Receivers: Rare, found in ultra-heavy-duty commercial setups (e.g., Ford Super Duty); often use reducers.

So while the 2-inch hitch is the most versatile option for everyday towing, it’s not a one-size-fits-all solution.

Choosing the right receiver size depends on your vehicle, your trailer, and the load you’re hauling—not just what’s popular.

Helpful Resource → Hitch Sizes Explained: Classes, Receiver Size + GTW & TW Limit

How to Spot a Dangerous Misfit: Ball, Coupler, and Mount Must Work Together

One of the most overlooked, and most dangerous, mistakes in towing is assuming “close enough” is good enough.

Let’s break down how to avoid these misfits, and why every piece of your towing setup, from ball to coupler to mount, needs to be in perfect sync.

Every Ball Must Match Two Things: Coupler Size and Load Rating

It’s not just about the size you can see. Hitch balls are load-bearing components, and they’re engineered to handle very specific weight ratings and coupler fits. You must always match your hitch ball to:

• The coupler size (usually stamped on the trailer coupler itself)

• The gross trailer weight (GVWR) of what you’re towing

For example, a 2-inch hitch ball may look like it fits a 2-inch coupler, but if it’s not rated for the trailer’s weight, or the coupler’s internal shape is slightly different, you’re asking for trouble.

The Three Measurements That Actually Matter

A proper hitch ball isn’t just about the ball head. You need to measure and match three things:

1. Ball Diameter: The size of the ball itself, usually 1-7/8", 2", or 2-5/16". This must match the trailer coupler exactly. No exceptions.



2. Shank Diameter: The thickness of the threaded stem that inserts into the ball mount. If it’s too narrow, it won’t tighten properly. Too thick, and it won’t fit at all.



3. Shank Length: This needs to be long enough to go through your ball mount and secure with a lock washer and nut, but not so long that it compromises integrity or drags.

A mismatch in any of these areas creates a weak point in your towing setup.

What Can Go Wrong When Things Don’t Match?

• Too Small a Ball: The coupler may close, but it’ll have play, and over time, that movement can loosen the latch. Worst-case scenario: the trailer pops off while driving.



• Too Large a Ball: You may not be able to latch the coupler at all, or you’ll think it’s secured when it’s not. Some people force it closed, damaging the latch or coupler in the process.



• Painted or Rusted Couplers: If the size stamp is buried under layers of paint or corrosion, you’re working blind. Always scrape clean and verify the correct sizing before matching a ball.



• Shank Doesn’t Fit the Mount: If the shank is loose in the mount hole, the ball can shift under pressure. If it’s too tight, people often try to force it in or widen the hole, both unsafe.

We’ve seen it all: trailers shaking over every bump, safety chains pulled tight from poor drop measurement, or customers wondering why their “standard” ball won’t latch.

In every case, the root issue traces back to misunderstanding how the parts connect.

Hitch Size Is the Foundation, but Not the Whole Story

Your hitch class determines the range of loads your setup can handle. But the ball, mount, and coupler must match that rating and each other in physical size.

A Class III hitch with a poorly matched ball mount and coupler is no safer than a bumper hook.

Coming up next, we’ll help you tackle another common source of towing issues, drop height. Because even if your parts are the right size, towing at the wrong angle is a mistake too many drivers make.

Send Us a Photo – Here’s How to Get the Right Hitch or Lock Without Guessing

Still unsure if your setup is a perfect fit? Don’t guess, send us a photo and let our team handle it. Here’s how it works:

1. Take a clear photo of your trailer’s coupler, make sure the latch and any stamped info are visible.

2. Send it to us via live chat or email: support@provenlocks.com.

3. Get a real answer from a product expert, no bots, no forms, just the exact lock or hitch you need.

No returns. No misfits. No towing risks. Just the right gear, the first time.

Wrap Up – Standard Hitch Size Isn’t So Standard, But Now You Know What to Do

What’s considered “standard” in towing isn’t always consistent.

A 2-inch label might appear on everything from hitch balls to couplers to receivers, but that doesn’t mean they all fit together.

Size alone isn’t enough.

Safety depends on matching your hitch class, ball, mount, and coupler precisely, and that means going beyond generic solutions.

At Proven Industries, we’ve seen what happens when people guess: loose fits, unsafe tows, and locks that don’t actually protect anything.

That’s why we offer real support built around real fitment, not just specs on a screen.

If you’re unsure about what you have or what you need, don’t leave it to chance. Send us a photo of your coupler. We’ll handle the rest.

support@provenlocks.com or upload directly via our chat.
