Model 400XL

Regular price $50.00

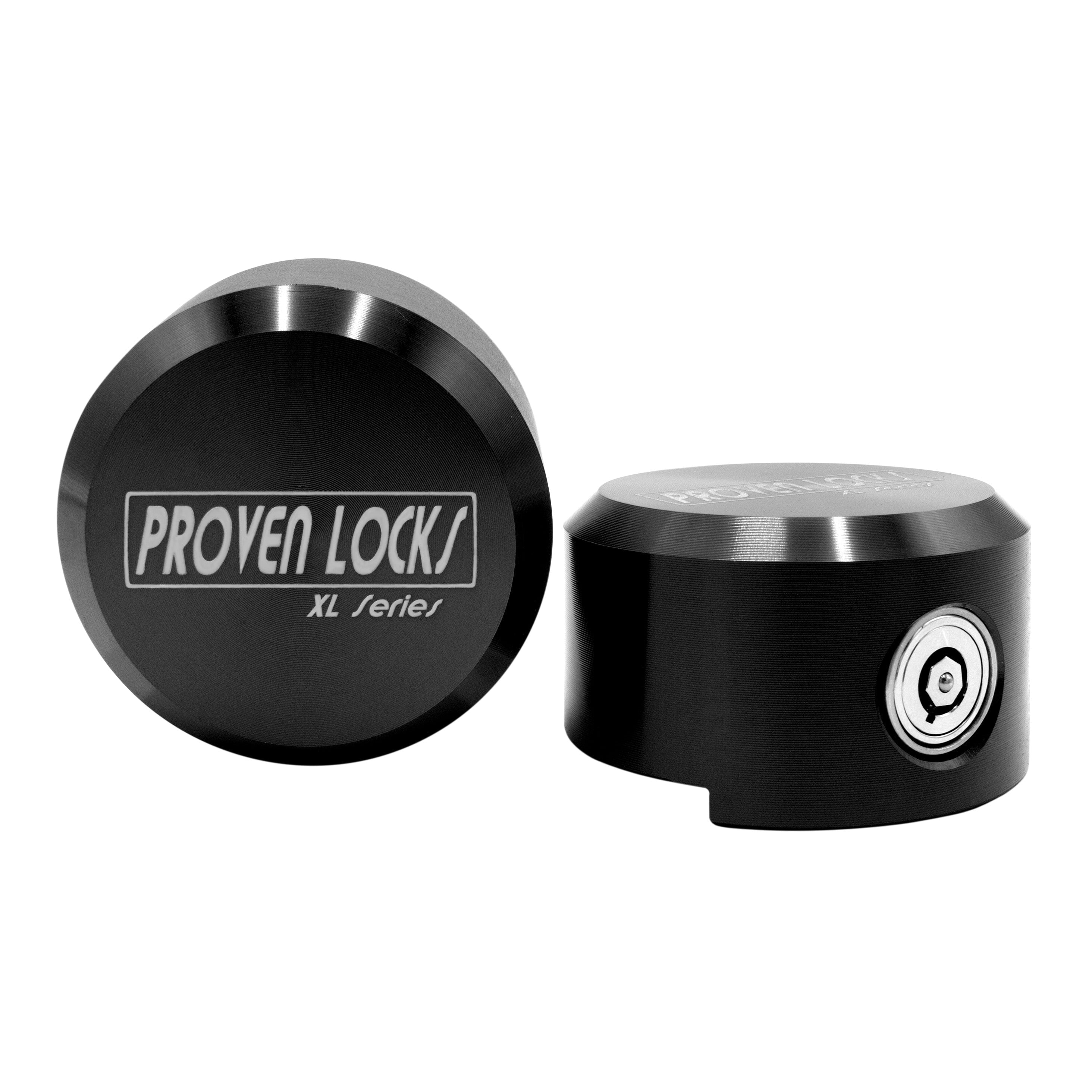

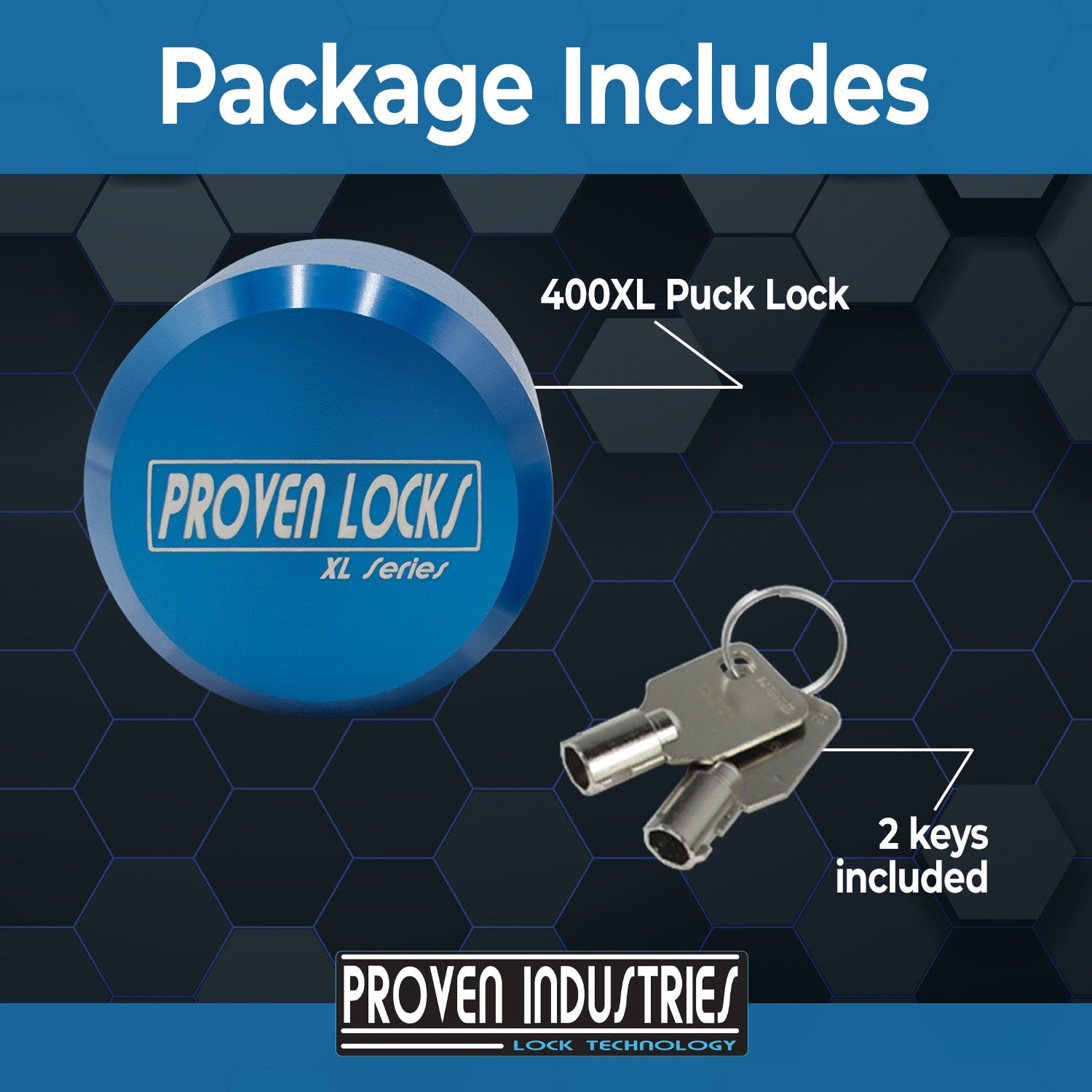

Model 400XL puck padlock with hidden shackle  (2 keys included)

Machined from a solid bar of Aircraft Grade 6061 Aluminum and fitted with a 7 pin pick resistant tubular cylinder.

This version puck lock has a step back. This model is the same as model 400A but has a larger opening in the back to fit rear and side enclosed trailer doors.

  • 6061 Solid Aluminum lock body
  • 7 pin tubular cylinder
  • Corrosion resistant
  • 2 keys per lock

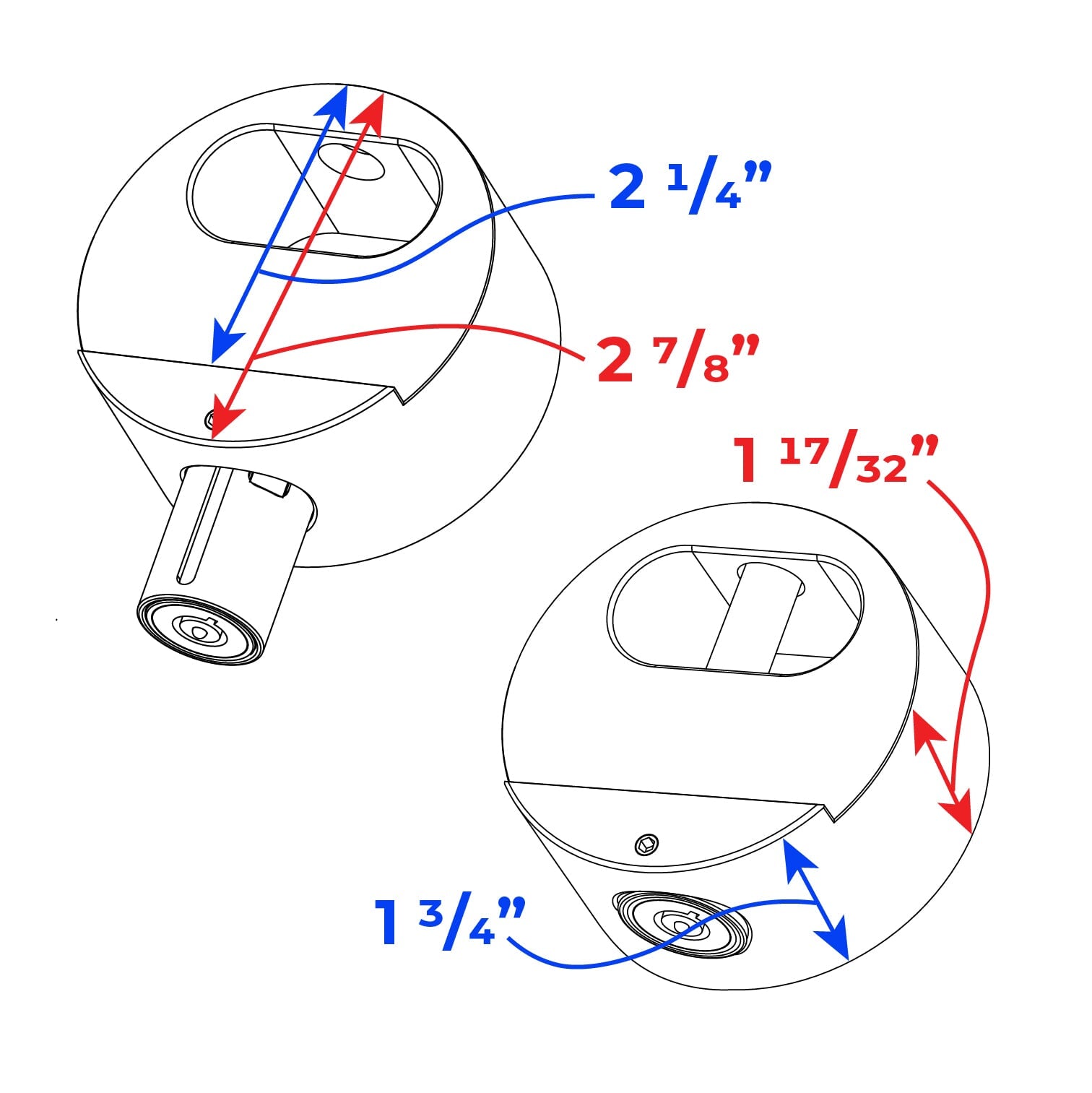

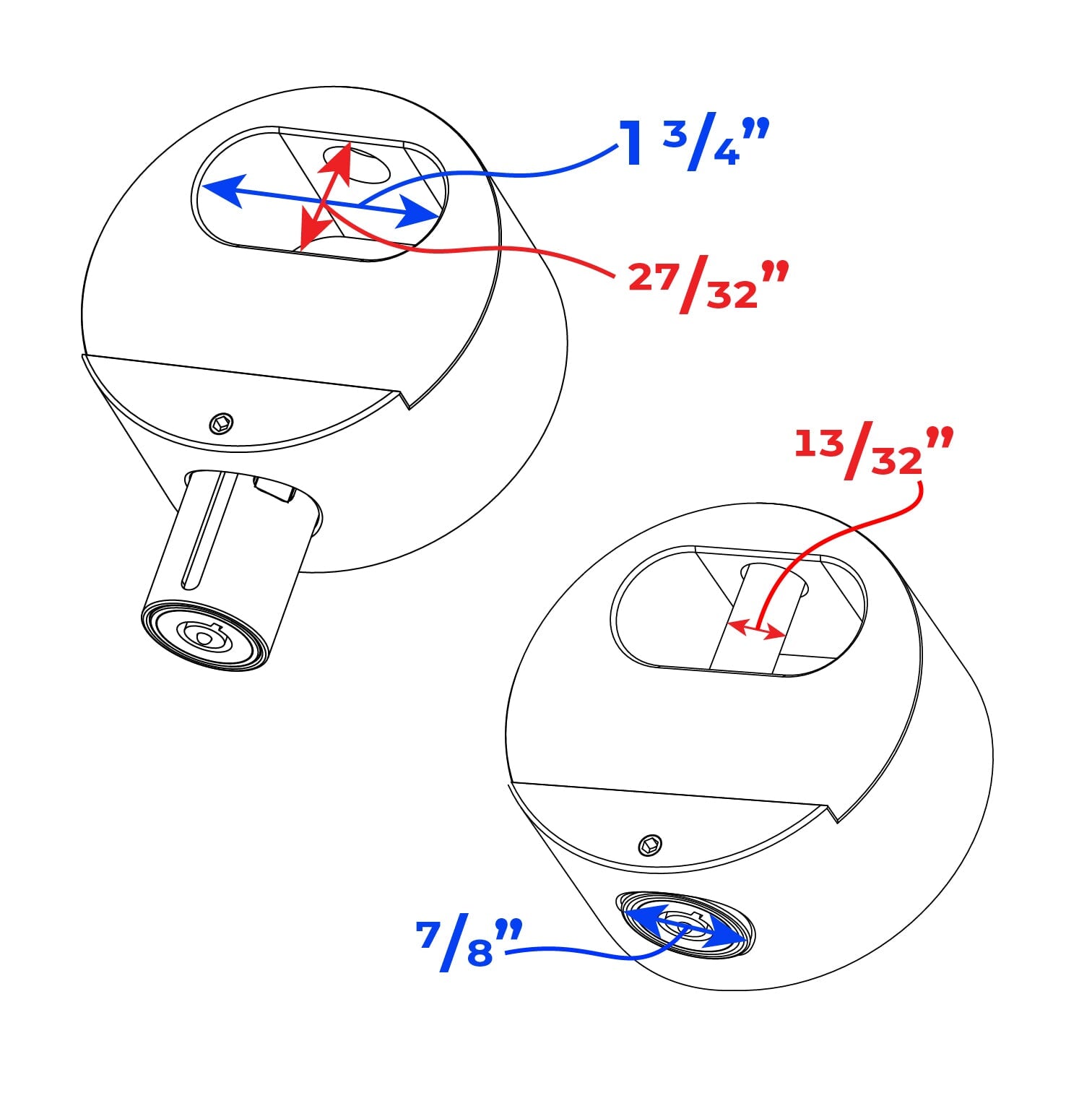

Puck Lock Dimension's
Body diameter : 73mm - 2-7/8"
Body height :38mm - 1-1/2"
Shackle opening depth clearance : 32mm - 1-1/4"
Shackle opening width : 44mm - 1-3/4"
Shackle opening height : 22mm - 7/8"
Distance pin from back of lock : 8.5mm - 11/32"


Maintenance Disclaimer: Please note preventative maintenance will be required in order to keep your lock cylinders functioning properly.  This is especially likely in extreme weather climates.  Graphited fluid will be needed to extend the life of your lock, by sealing out moisture and providing protection against freezing.  Please inquire for additional information.

*Please note, product pictures may not represent current model, as products are revised.  All locks are now upgraded to 7 pin tubular lock at no additional cost.
