Receiver Hitch Dimensions Explained for Safer Towing

Receiver hitch dimensions aren’t all the same, and choosing the wrong one can wreck your tow setup. The internal width of that square tube on your vehicle is what matters most, and it directly affects what you can tow, how safely you can do it, and which accessories will actually fit.

Receiver Hitch Sizes: Know This Before You Tow

Receiver hitches come in four standard sizes, 1.25", 2", 2.5", and 3", and they align with five hitch classes (I through V). But here’s the catch: bigger isn’t always stronger, and what looks “standard” might not be.

Here’s what matters most:

• 1.25" receivers: Found on small SUVs, sedans, ideal for bike racks and light towing.

• 2" receivers: Most common size, fits midsize SUVs and half-ton pickups.

• 2.5" receivers: Heavy-duty trucks (F-250+, RAM 2500+); built for big loads.

• 3" receivers: Found only on 2017+ Ford Super Duty, commercial grade towing only.

• Hitch class ≠ size: A 2” receiver can be Class III, IV, or even V depending on build.

It’s not about what fits, it’s about what holds under pressure. We’ve discussed that in depth below.

But size alone isn’t enough.

To truly tow safely, you need to understand how receiver dimensions interact with drop, depth, alignment, and load. Keep reading, because these small details make all the difference once you're moving.

Why Receiver Size Misconceptions Lead to Costly Mistakes

Most people see that metal square under the truck and assume it’s just a hitch. But that square, called the receiver hitch, is the anchor point for your entire towing setup.

It’s not the ball, not the coupler, and it’s definitely not something to guess on.

What a Receiver Hitch Really Does

The receiver is the fixed tube attached to your vehicle’s frame. It’s what accepts inserts like ball mounts, bike racks, and other towing accessories.

But here’s where it gets tricky, just because it looks like a standard size doesn’t mean it is. Too often, people rely on visual guesswork instead of verifying the exact measurement.

That’s where problems start.

The Myth About Receiver Size and Hitch Class

One of the most common assumptions we see is that bigger size means higher class.

That’s not always the case. Here’s what to know:

• A 2” receiver might be Class III, IV, or even V depending on the vehicle’s tow package.

• Receiver size does not determine weight class, it’s the capacity that defines class.

• Hitch class is based on:



• Gross Trailer Weight (GTW): how much your trailer weighs fully loaded.

• Tongue Weight (TW): the downward force the trailer puts on the hitch.



• A Class V hitch could still use a 2” opening in some setups, while some 2.5” receivers are only rated for Class IV.

It’s not about what fits, it’s about what holds.

Why It Matters More Than You Think

A mismatch between hitch class and receiver size can lead to problems you won’t notice until it’s too late:

• Rattling and movement at highway speeds if the shank doesn’t fit snugly.

• Underrated towing setups that stress your hitch or frame beyond its limits.

• Failed connections if a short shank doesn’t reach the pin hole properly.

• False confidence from assuming size equals strength, when the real numbers say otherwise.

When you’re towing thousands of pounds, there’s no room for guesswork.

A properly sized, well-matched setup isn’t optional, it’s essential for safety and performance.

Meet the Four Standard Receiver Sizes, and When to Use Each

There are four standard receiver sizes, and they align with five hitch classes, each designed to handle different types of loads, vehicles, and use cases.

Here’s a quick overview to help you see how they line up:

Receiver Size & Hitch Class Comparison

Now let’s break down each receiver size and when it’s typically used.

1.25-Inch Receivers

• Found on: Compact cars, sedans, and small SUVs

• Common hitch classes: Class I and II

• Typical uses: Light-duty towing, bike racks, small cargo carriers, utility trailers

• Why it matters: These hitches are about convenience, not power. They're ideal for accessories and occasional hauling, not for pulling serious weight.

2-Inch Receivers

• Found on: Midsize SUVs, half-ton pickups, utility vans

• Common hitch classes: Class III and IV

• Typical uses: A broad range, from boats and campers to equipment trailers

• Why it matters: This is the most common and most versatile receiver size. Most aftermarket accessories are designed around it. It’s the workhorse of everyday towing.

2.5-Inch Receivers

• Found on: Heavy-duty trucks like RAM 2500+, Ford F-250+, Silverado 2500+

• Common hitch classes: Class IV and V

• Typical uses: Heavy trailers, RVs, toy haulers, or any setup where 10,000+ lbs is on the line

• Why it matters: This size gives you the strength of Class V towing, but you’ll need to double-check accessory compatibility. Many hitch products default to 2”, so a reducer sleeve may be required.

3-Inch Receivers

• Found on: 2017+ Ford Super Duty (F-350/F-450 dually)

• Common hitch class: Class V

• Typical uses: Commercial loads, large trailers, industrial-grade towing

• Why it matters: This is the biggest receiver you’ll find on consumer-grade vehicles. It’s not just for towing, it’s for extreme towing. Accessories are limited and fitment must be exact.

With this foundation in place, you’ll know exactly which size to check for, and why it matters.

With the right receiver size matched to your vehicle and towing class, you’re halfway there. But proper fit is just the beginning.

To tow safely, you also need to understand how that size influences handling, weight distribution, and overall hitch performance under load.

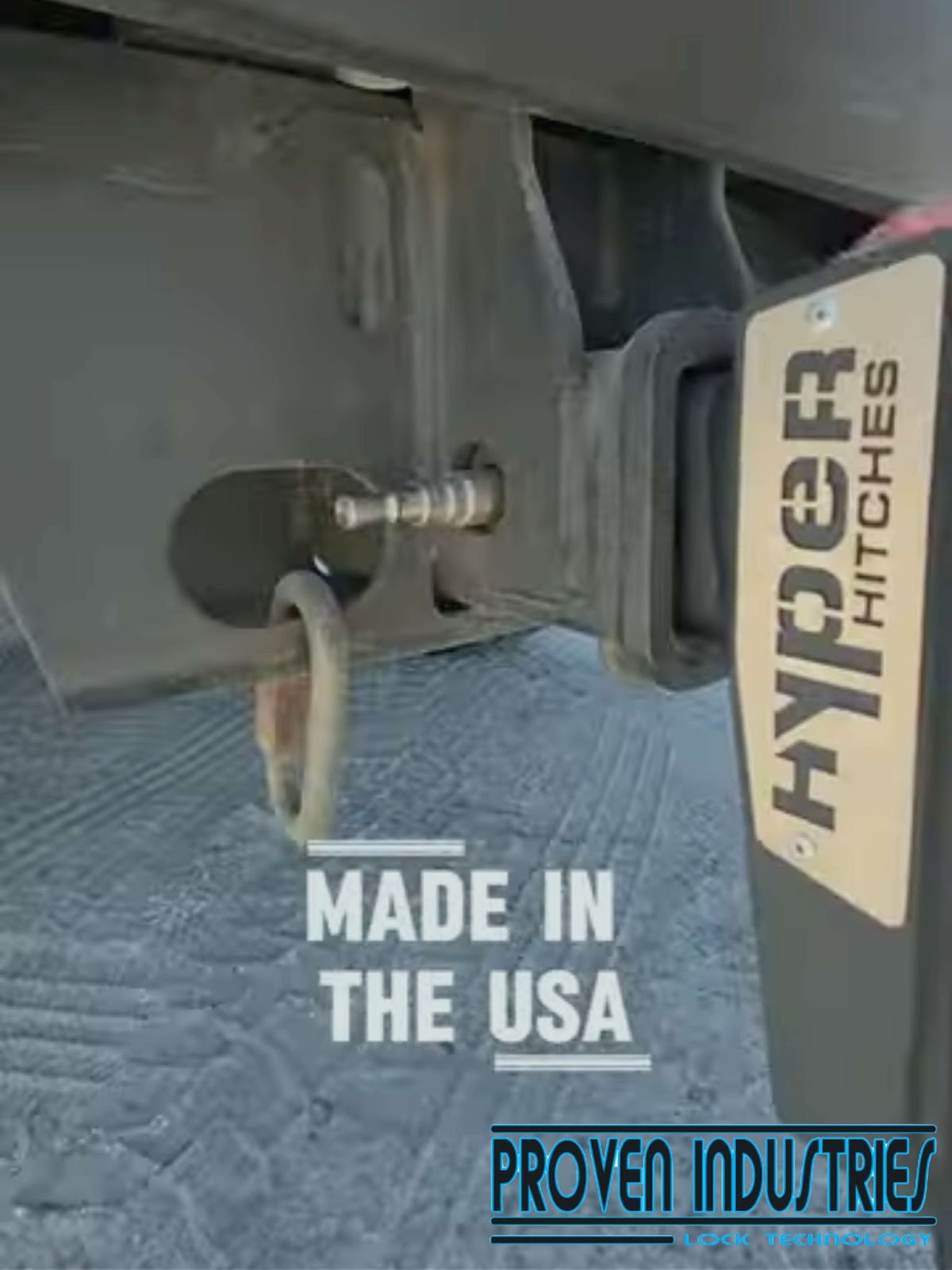

Protect your trailer/hitch with the best in hitch security.

The Critical Connection: How Receiver Size Impacts Towing Safety

Your hitch’s receiver size isn’t just about what fits, it directly affects how safely and smoothly your setup tows.

From trailer sway to structural stress, the wrong fit can create more problems than most drivers expect.

1. Size and Class Define Your Limits

Every hitch is rated by:

• Gross Trailer Weight (GTW): How much your trailer weighs, fully loaded

• Tongue Weight (TW): The downward force on the hitch

These ratings are tied to your hitch class, not just the size of the receiver.

A 2” receiver might be Class III or Class V. Without checking capacity, you’re guessing your safety margin.

2. Mismatched Parts = Real Problems

Here’s what happens when receiver size and accessory don’t match:

• Too small: Rattling, sway, poor handling

• Too big: Won’t insert, or needs an adapter

• Stacked adapters: Flex under load, reduced towing strength

It’s not just annoying, it can be unsafe.

3. Insert Depth Matters More Than You Think

If the shank doesn’t fully seat into the receiver or the pin hole barely aligns, you’ve created leverage.

That weak point compounds under load and vibration, especially on heavier trailers.

Receiver fit, weight ratings, and insert depth all shape how your hitch performs under load, but sometimes even a correct match needs help.

That’s where adapters and extenders come in, offering flexibility in setups that don’t quite line up out of the box.

Helpful Resource → What Trailer Hitch Do I Need? | The Ultimate Hitch Buying Guide

Adapter Sleeves and Extenders: Useful or Unsafe?

Not every accessory fits every hitch, and that’s where adapter sleeves and extenders come in.

These tools offer a quick fix when your gear and your receiver don’t match up. But while they solve one problem, they can quietly introduce others.

Why They Exist

Adapter sleeves and extenders bridge the gap when accessories and receiver sizes don’t match.

A sleeve lets a 2" shank fit into a 2.5" receiver.

An extender adds length to clear bumpers or spare tires. They offer quick compatibility, but not always without trade-offs.

When They’re Actually Helpful

• Sleeves fit smaller 2" accessories into 2.5" or 3" receivers.

• Extenders provide extra space for clearance in tight setups.

When used within rated limits, they can solve specific fitment issues effectively.

When They Become a Problem

• Pin misalignment: Some sleeves shift the pin hole just enough to make locking the insert a hassle, or impossible.



• Increased movement: Even well-made adapters can introduce wiggle room, leading to rattle or sway during towing.



• Reduced capacity: Most extenders cut your tongue weight and towing capacity in half. That’s not a suggestion, it’s usually printed right on the part.

Added note: There’s a common belief that a solid steel sleeve makes a smaller shank just as strong as one made for the receiver. That’s false.

You’re adding another layer between critical connection points, and every layer adds flex, wear, and potential failure under stress.

For light use, maybe. For real towing? Measure and match instead.

Special Cases: Lifted Trucks, Bike Racks, and Hitch Steps

Lifted trucks often require deep-drop hitches to keep trailers level, standard drops won’t cut it.

Bike racks and hitch-mounted steps can also run into issues if the receiver tube is shallow or the pin hole doesn’t align properly.

These accessories depend on full insert depth and proper clearance.

Always double-check fit, especially with aftermarket parts, where dimensions and tolerances can vary from factory specs.

That’s why even the right receiver size doesn’t guarantee a perfect fit.

The smallest mismatch, in depth, drop, or alignment, can snowball into real towing issues once you hit the road.

The Hidden Hitch Mistakes That Lead to Unsafe Towing

Even with the right receiver size, small missteps can quietly compromise your towing setup.

These aren’t just technical errors, they’re common oversights that show up in forums, returns, and real-world towing failures.

• Wrong drop hitch for lifted trucks: A 4" drop on a lifted truck may leave the trailer nose-up, causing sway, poor weight distribution, and braking issues. Always measure height differences before buying.



• Misaligned pin holes: Shanks that don’t seat fully or pins that don’t line up are often due to weld buildup, thick powder coating, or mismatched brands. These tension points can wear down or fail under load.



• Assuming OEM hitches are standard: Factory hitches may look like 2", but slight variances or shallow depths throw off accessory fit.



• Aftermarket ≠ universal: Custom hitches can vary widely in receiver depth and placement. Even “universal” accessories need to be matched to your exact setup.

These issues don’t always show up in the driveway, but they make themselves known on the highway.

The right fit isn’t just about size, it’s about how every detail lines up when the trailer starts moving.

Final Check: The 5 Things You Must Measure Before Buying Any Hitch Accessory

Before adding that hitch accessory to your cart, take a few moments to measure these five key specs.

They’re easy to overlook, but critical to getting a secure, rattle-free fit.

• Receiver Opening Width (Internal): Don’t eyeball it, measure wall to wall to confirm if it’s 1.25", 2", 2.5", or 3".



• Receiver Depth: Check that your insert seats fully without hitting the back or falling short.



• Pin Hole Placement: Make sure the accessory’s pin hole aligns with your receiver’s, some are too far forward or back.



• Height from Ground to Receiver: This tells you how much drop (or rise) you’ll need to tow level.



• Shank Size and Length: Confirm the shank fits snugly and reaches the pin hole without leaving extra play.

The best towing setups aren’t built by guesswork.

Taking a few simple measurements upfront helps avoid the frustration of poor fitment, unwanted noise, or unsafe handling.

Getting these details right means your gear works as expected, every time you hitch up.
